Wuben X2 White⌗

Specifications
Introduction
Torch in use
Build quality
LED, bezel, lens, reflector and beam
Size and comparison
User interface
Batteries and charging
Performance
Beamshots
Conclusion
Price
Product page

Specifications⌗

Brand/model	Wuben X2 White
LED	3x Samsung LH351D
Maximum lumens	1,800 lm
Maximum beam intensity	4,100 cd
Maximum throw	182 m
Battery	Built-in 2000mAh
Onboard charging	Yes (USB-C)
Material	Aluminium
Modes	4
Blinkies	Strobe, SOS
Reflector	OP
Waterproof	IP68
Review date	June 2023

Introduction⌗

Wuben kindly sent a Lightok Easy Carry Light set after visiting the Wuben factory.

Th set included the Wuben X0, X1, X2 and X3:

The Wuben X2 with a white micro-arc oxidation finish is a lighter version of the EDC torch and it feels smooth. I previously reviewed the heavier Wuben X2 Copper.

I have not been paid for this review nor have I held back my opinions of this torch.

Packaging⌗

The Wuben X2 comes in a white Wuben branded box. An image of the specific version of the torch, and the specifications, can be found on the back of the box.

The following was included in the box:

Wuben X2 White
USB-A to USB-C cable (lanyard)
Red diffuser
User manual

I like how the box has two doors that open up to reveal the torch!

Torch in use⌗

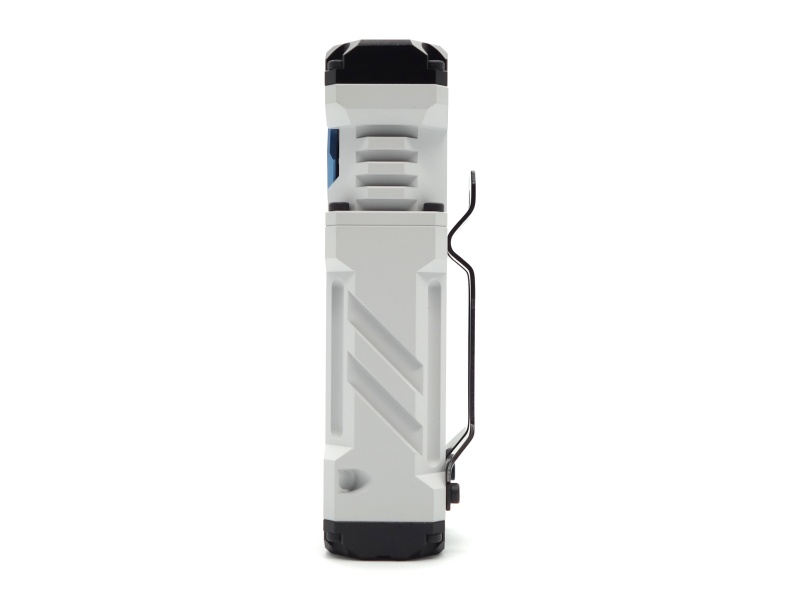

The Wuben X2 with a white micro-arc oxidation finish is pretty much the same size as the copper version but it is much lighter.

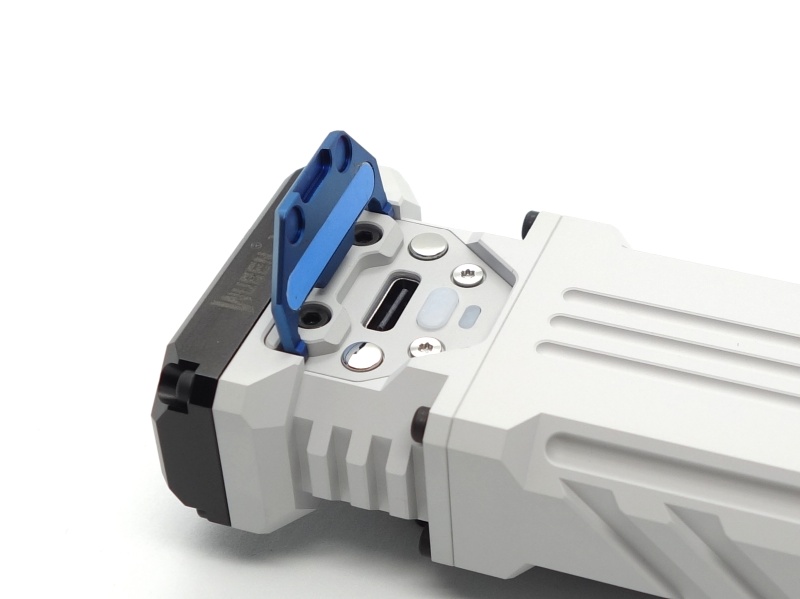

A blue aluminium flap acts as a cover for the USB-C charging port and as the point where you can click the electronic side switch (•ᴗ•).

It can be fun to fidget with the flap!

The blue flap does not flick forward as far as the silver flap on the Wuben X2 Copper so I opened it up to investigate.

I unscrewed the two black screws with a T6 bit and the two silver screws with a T7 bit to see if the blue flap can easily be removed and adjusted. Short answer: no. There are two pins holding the blue flap into the white aluminium piece. The two big circle bits near the USB-C port popped out with springs behind them. I had fun trying to get those back in and screwing everything back together.

The actual switch is hidden behind the silicone cover, between the two silver screws.

There is a battery status (and charging) indicator LED below the switch. It is visible when the flap is closed.

A USB-A to USB-C lanyard has been included. It has a nice design but I find myself using whatever USB-C cable my phone is using and end up with a drawer full of USB cables.

A red diffuser has also been included. It might be handy in an emergency if you have the Wuben X2 in a car as a backup light. I personally have never used a red diffuser as a traffic wand nor have I been in a situation requiring it. It might be useful for those in law enforcement.

I wish that the Wuben X2 had a magnet in the tailcap like the Wuben X0. I keep throwing the X0 in my pocket when I know that I need to have my hands free.

That said, the lack of magnet makes the Wuben X2 a bit more pocket friendly when I have other electronic devices and metal objects in my pockets.

Build quality⌗

This version of the Wuben X2 is made of aluminium and it has a white micro-arc oxidation finish. It feels like a smooth matte finish.

The fins on the side have not been chamfered. They are not sharp but it would be nice if the edges were chamfered to make them smoother.

The metal pocket clip is much thinner and more flexible compared to the pocket clip on the Wuben X2 Copper.

There are multiple long slots where you could install glow sticks or tritium vials to personalise the Wuben X2.

“Do not disassemble” can be found on the bottom of the torch.

LED, bezel, lens, reflector and beam⌗

The Wuben X2 White has three Samsung LH351D emitters sitting behind a glass lens with an anti-reflective coating.

I did a teardown of the Wuben X2 Copper.

CCT, CRI, and duv⌗

I have taken Correlated Colour Temperature (CCT) and Colour Rendering Index (CRI, RA of R1-R8) measurements with the torch positioned one metre away from an Opple Light Master Pro III (G3).

The CCT is around 4600K. The CRI is around 96.

The Delta u, v is close to zero on lower modes and slightly positive (green) on Turbo. It is a bit of a tint lottery with these Samsung LH351D emitters. I prefer to the tint of my Wuben X0 and Wuben X2 Copper.

The beam produced has an oval hot spot and a rectangular spill. There is a corona and a hint of purple in the spill when using Turbo.

Mode	CCT (K)	CRI (Ra)	x	y	Duv
Low	4499	97.6	0.3609	0.3628	-0.0004
Med	4554	96.0	0.3591	0.3622	-0.0001
High	4602	95.8	0.3577	0.3628	0.0007
Turbo	4723	95.3	0.3543	0.3650	0.0031

Calculate Duv from CIE 1931 xy coordinates

Dimensions and size comparison⌗

Dimensions⌗

I took the following measurements using a vernier caliper.

Measurement	Unit (mm)
Length	84.5
Height	20.0
Height with pocket clip	25.0
Head width	39.1
Body width	35.0

Weight⌗

I took the following measurements using a digital scale.

Weight	Unit (g)
Wuben X2 White	120.56

Size comparison with its competition⌗

From left to right: Wuben X2, Wurkkos TS10, ReyLight LANapple Purple

From left to right: Wuben X0, Wuben X1, Wuben X2, Wuben X3 Prototype

User interface⌗

The Wuben X2 has an electronic side switch. It is relatively easy to use. Click on, click off. Hold to change modes.

There are three main modes: Low, Med and High. And shortcuts to: Turbo, Strobe and SOS.

State	Action	Result
Off	Hold	Low
Off	Click	On (mode memory)
Off	Two clicks	Turbo
Off	Three clicks	Strobe
Off	Four clicks	Lock-out
On	Hold	Cycle (Low, Med, High)
On	Click	Off
On	Two clicks	Turbo
On	Three clicks	Strobe
Lock-out	Click	Battery status indicator blinks three times
Lock-out	Four clicks	Low
Strobe	Click	On (mode memory)
Strobe	Three clicks	SOS
SOS	Click	On (mode memory)
SOS	Three clicks	Strobe
Turbo from off, SOS or Strobe	Two clicks	Turbo
Turbo from Low, Med or High	Two clicks	On (mode memory)

The torch will flash three times when entering lock-out mode.

Mode memory does not include Turbo, SOS or Strobe.

Strobe⌗

Strobe has an alternating frequency.

Programming mode⌗

You can adjust the brightness of each Low, Med and High modes as follows:

Mode	Default	Min (lumens)	Max (lumens)
Low	5	5	100
Med	100	100	400
High	400	400	800

To set the brightness for a particular mode:

Click to turn the torch on.
Hold and release to select Low, Med or High.
Click and hold (2H). The brightness will ramp up or down and flash when it reaches the end.
Release at the desired brightness level.
Click and hold again to ramp in the opposite direction.

Factory reset⌗

Enter lockout mode and then:

Click, (pause for less than 0.5 seconds), Double click (pause for less than 0.5 seconds), Triple click.

The torch will enter reset, exit lockout mode, and enter the lowest mode.

Battery status indication⌗

The indicator LED near the switch will display the following for 5 seconds when the torch is on:

Colour	Battery level
Blue	Capacity ≥ 90%
Blue blinking	40% ≤ Capacity < 90%
Red	15% ≥ Capacity < 40%
Red blinking	Capacity < 15%

“Red blinking” will continue while the torch is on.

Low voltage protection⌗

I tested the Wuben X2 Copper and it has low voltage protection. The emitters turned off at 2.76V and the current dropped to 1.1 mA.

Here is a video:
Low voltage protection! Wuben X2 Copper

PWM⌗

I did not notice any visible PWM (flickering).

What I like about the UI⌗

It is relatively easy to use. Click on, click off. Hold to change modes.

What could be improved⌗

Direct access to SOS might be nice.
It would be nice if two clicks while in Turbo always results in the torch exiting Turbo mode. I noticed that the torch remained in Turbo while peforming two clicks after coming from off, Strobe or SOS.

Batteries and charging⌗

Battery⌗

I did a teardown in my Wuben X2 Copper review.

There are two 14500 cells connected in parallel (1S2P) to provide a capacity of 2000mAh.

Charging⌗

The indicator LED went red while charging and it went blue when charging was complete.

Power supply: PinePower Desktop USB-C
USB Meter: AVHzY CT-3 (recommended by LiquidRetro)
Room temperature: 13 C

Charging completed after 2 hours 36 minutes. The charging rate was approximately 5V 1A.

Power supply compatibility⌗

I tried the following power supplies with the built-in USB-C charger:

Power supply	USB Type	Protocol	Does it charge?
Apple 61W Power Adapter	USB-C	PD	Yes
Google Pixel Power Adapter	USB-C	PD	Yes
PinePower Desktop	USB-C	PD	Yes
PinePower Desktop	USB-A	QC	Yes
PinePower Desktop	USB-A		Yes

USB-C to USB-C charging works.

Performance⌗

Specifications from the manual:

FL1 STANDARD	Turbo	High	Med	Low	Strobe	SOS
Output (lumens)	1,800 + 800	400	100	5	1,000	200
Runtime	1min + 1h	2.5h	10h	80h
Beam Distance (metres)	128
Beam Intensity (cd)	4,100

Lumen measurements⌗

Mode	Amps at start	Specs	Lumens @turn on	Lumens @30 sec	Lumens @10 min
Low	0.01 A	5	6	6	6
Med	0.16 A	100	89	88	88
High	0.67 A	400	354	348	342
Turbo	5+ A	1,800	1,625	1,612	660

“Amps at start” measurements are from my Wuben X2 Copper review.

Standby drain⌗

29.1 µA

This measurement is from my Wuben X2 Copper review.

Runtime graphs⌗

I used my own DIY lumen tube with a TSL2591 sensor and forked bmengineer’s project RuTiTe to record runtimes.

Note: Lumen measurements may be off by 10% with my DIY lumen tube.

The room temperature was approximately 13 C.

Runtime⌗

Here is a summary of the runtime results:

Mode	User manual	Runtime result
Turbo	1min + 1h	1h 15min 58s
High	2h 30min	2h 50min 35s
Med	10h	11h 35min 10s
Low	80h	10min+

The runtime result is the time until my lumen tube no longer detects more than 1 lumen.

I stopped recording after 10 minutes for the Low mode.

I was able to turn the torch back on after the Turbo runtime finished. The battery was not completely drained.

The runtime results were slightly better than expected. However, the lumen output was lower than expected for Turbo at 30 seconds (1,612 lumens vs 1,800 lumens from the user manual).

The Wuben X2 Copper managed to hit 1,758 lumens at 30 seconds but the runtimes finished a few minutes earlier compared to the aluminium Wuben X2 with the same Samsung LH351D emitters.

Throw⌗

I took lux measurements with a UNI-T UT383BT at 30 seconds. Low was measured at one metre. Med, High and Turbo were measured at five metres.

Mode	Specs (cd)	Specs (m)	Candela measured (cd)	Distance (m)
Low			13	7
Med			200	28
High			1,100	66
Turbo	4,100	128	5,575	149

Beamshots⌗

I went to a local park and aimed the Wuben X2 White at a tree 70 metres away while using Turbo.

Beamshots were taken using a Sony RX100M2 using 3.2", f3.2, ISO 100, 5000K WB.

Wuben X2 White (Turbo)⌗

Wuben X2 Copper (Turbo)⌗

ReyLight LANapple (100%)⌗

Wurkkos TS10 4000K (Turbo)⌗

Conclusion⌗

The aluminium Wuben X2 with a white micro-arc oxidation finish is a great EDC option if you are looking for a pocket-sized rectangular torch. Built-in USB-C charging makes it convenient while travelling.

The rectangular beam looks nice and smooth.

I like the spacing between each mode but if you would prefer it to be brighter then you can configure each level to be brighter.

It would be better if Wuben used two replaceable 14500 cells instead of having a battery pack soldered to the driver. This would make it easier to replace the cells after years of use. The Wuben X0 is currently the only torch in this series where the battery (an 18350) can easily be replaced.

Light output for Turbo was slightly lower than expected at 30 seconds. I noticed similar results in a review by 1lumen.com.

Runtime results were better than expected (similar to the Wuben X2 Copper).

Pros:⌗

Good build quality.
Floody beam.
High CRI.
Beam looks nice.
Built-in USB-C charging.

Cons:⌗

No magnet in the tailcap.
Edges are not chamfered.
Battery pack is soldered to the driver.
UI bug where I can’t exit Turbo with two clicks from off, Strobe or SOS.

Price⌗

The Wuben X2 White is AU$179.95 at the time of writing from liteshop.com.au.

Wuben are definitely aiming for enthusiasts with this price.

Product page⌗

Promo code: SG9IP8YKT5PI

liteshop.com.au affiliate link

Promo code: TIM20

wubenlight.com affiliate link

I may earn a commission if you use an affiliate link or a promo code. This will help fund future torch reviews and tutorials.
